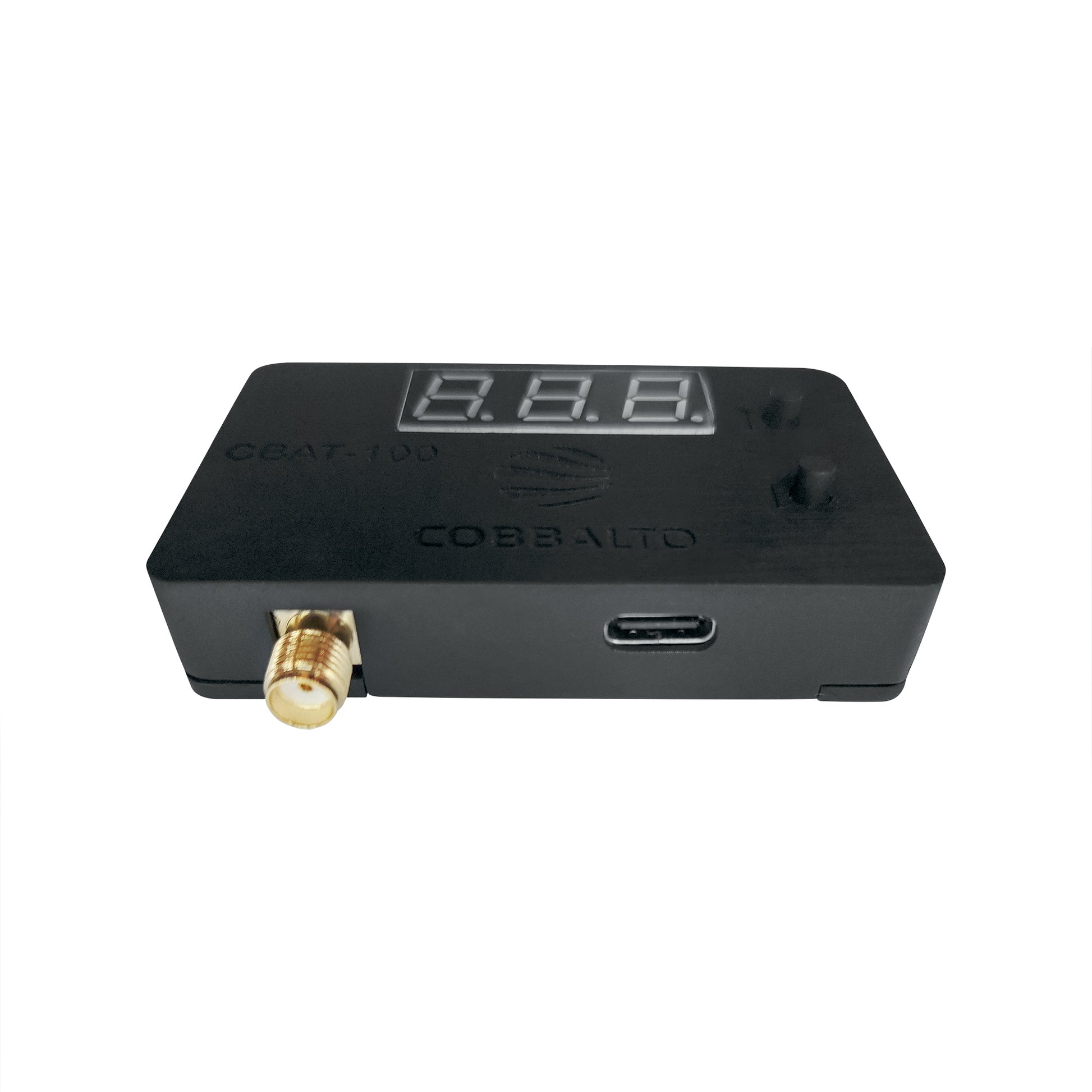

15.5 dB Digital attenuator 0.02 - 3GHz

15.5 dB Digital attenuator 0.02 - 3GHz

1 7

Product Specifications

  • Product attribute
  • Attribute value
  • Manufacturer:
  • TDK
  • Product category:
  • Film Capacitors
  • Capacitance:
  • 0.1 uF
  • DC voltage regime:
  • 1 kVDC
  • Finishing style:
  • Radial
  • Dielectric:
  • Polypropylene (PP)
  • Conductor spacing:
  • 15 mm (0.591 in)
  • Length:
  • 18 mm (0.709 in)
  • Width:
  • 11 mm (0.433 in)
  • Product:
  • Film Capacitors
  • AC voltage regime:
  • 490 VAC
  • Tolerance:
  • 20 %
  • Number of pins:
  • 2 Pin
  • Height:
  • 18.5 mm (0.728 in)
  • Leadership style:
  • Straight
  • Minimum operating temperature:
  • - 40 C
  • Maximum operating temperature:
  • + 110 C
  • Series:
  • B3291*H/J - X1 480Vac
  • Packaging:
  • Bulk
  • Mark:
  • EPCOS / TDK
  • Capacitance - nF:
  • 100 nF
  • Capacitance - pF:
  • 100000 pF
  • Outer diameter:
  • 0.8 mm
  • Product Type:
  • Film Capacitors
  • Factory Package Quantity:
  • 300
  • Subcategory:
  • Capacitors
  • Type:
  • EMI Suppression Capacitor
  • Part Number Aliases:
  • B32912H4104MB 32912H4104M

Stock & Availability

Out of stock

  • Factory Lead Time:
  • 2 Weeks
Unit price: $24.00
Ext. Price: $24.00

Volume Discount Pricing

Qty Unit Price Total Price
1 $24.00 $24.00
10 $22.56 $225.60
25 $21.36 $534.00
50 $18.96 $948.00
Secure & Trusted Payment Options
  • Visa
  • Mastercard
  • PayPal
  • Apple Pay
  • Shop Pay
  • Google Pay

General description

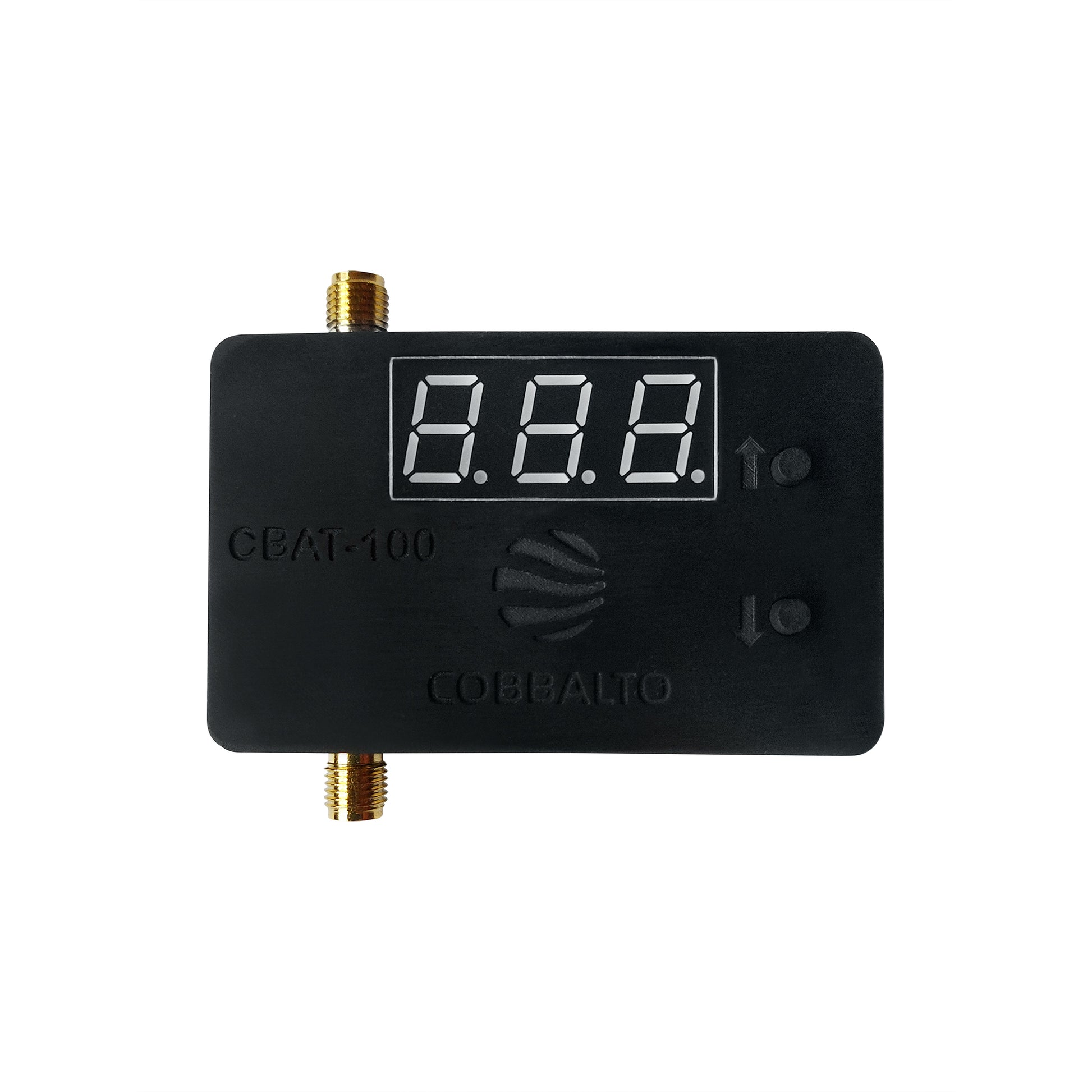

CBAT-100 it's a digitally controled attenuator, tunable in steps of 0.5dB, between 0 and 15.5dB. Within a frequency range of 0.02 to 3GHz. With a maximum limit of 23dBm power input, it is ideal for laboratory measurements such as signal control, RF amplifier tunning and mitigation of signal reflections. It can be supplied with an USB-C cable, with very low consumption of a maximum of 200mA.

Data, Drawings

  • DATASHEET
  • View Data
  • View Graphs
  • S-PARAMETERS
  • Case Style - YS3481
  • Environmental Rating - ENV130

Features

  • Operates without requiring external software.
  • 0.5 dB resolution.
  • Very simple interface.
  • Last value saved when power up.
  • 23dBm maximum input power

Applications

  • IF, ISM, WLAN, LTE amplifiers.
  • General purpose low noise wideband amplifier.
  • Pre-amplifier applications

Downloads

View full details

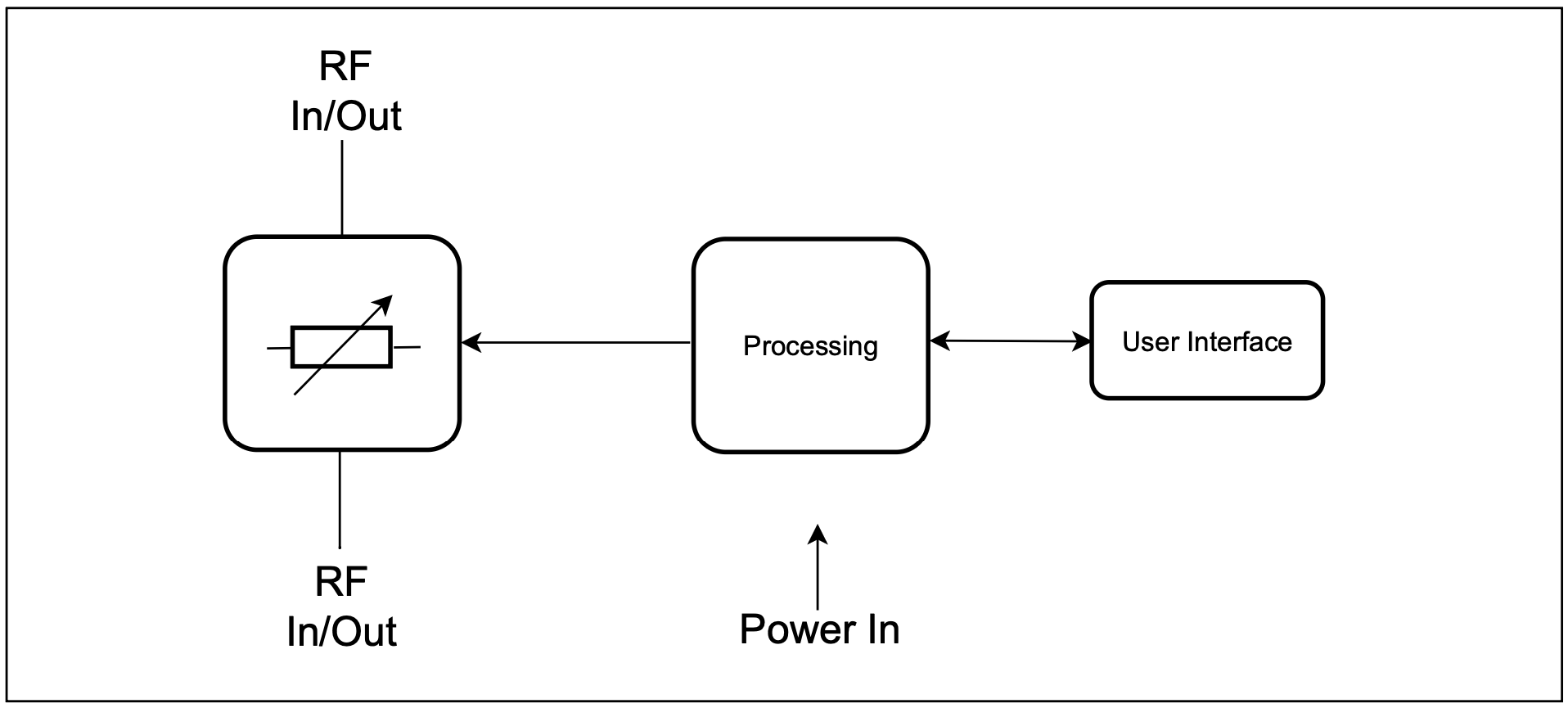

Simplified Block Diagram

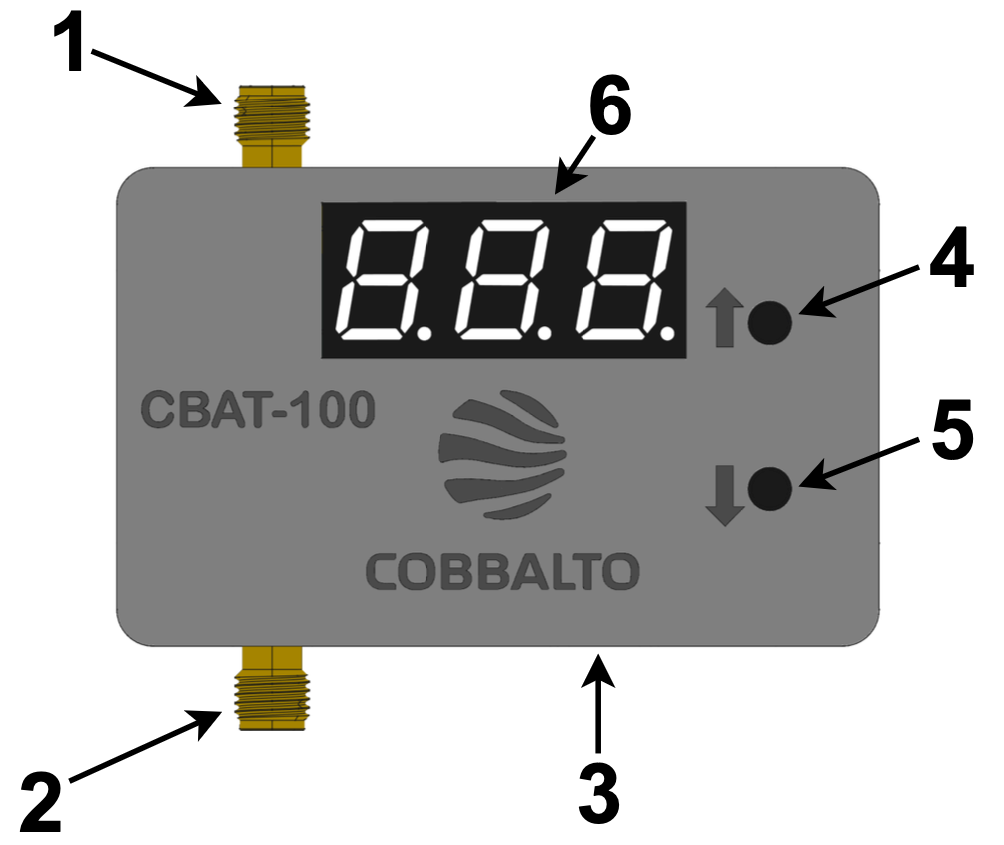

Pin Description

PIN Description
1 RF Signal Output/Input
2 RF Signal Output/Input
3 USB-C Power input.
4 Upper button for attenuation set. (Hold to increase speed )
5 Down button for attenuation set. (Hold to increase speed )
6 Displays the current attenuation value.

Characteristics table

Symbol Description Min Typ Max Unit
VCC USB supply voltage  3.4 5 5.5 V
Icc supply current 80 100 mA
Ptot total power dissipation 250 mW
Temp Working temperature  65 ºC
dB Attenuation drift at 0.05GHz +1.28 dB
Attenuation drift at 0.5GHz +1.44
Attenuation drift at 2GHz +1.83

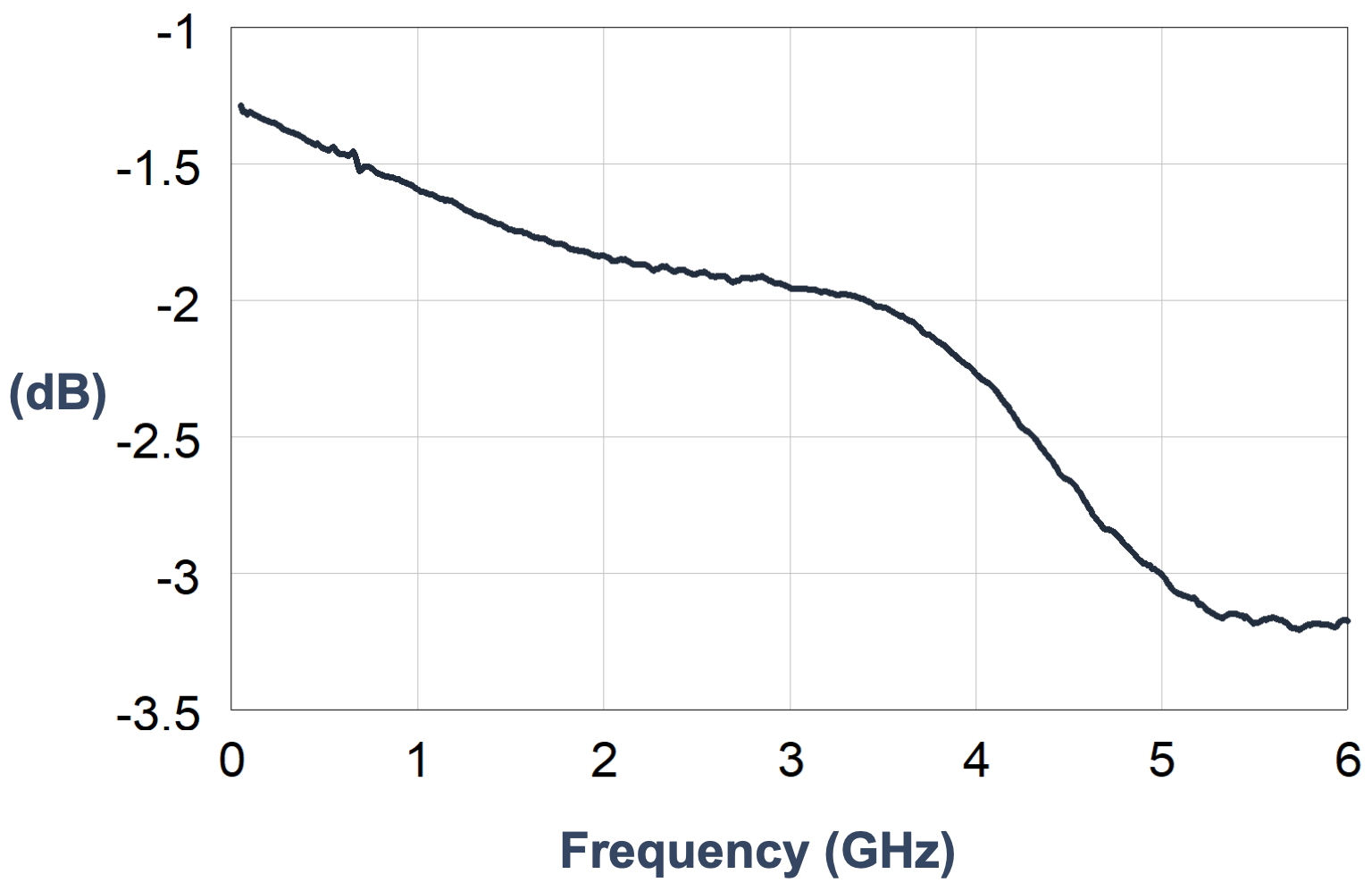

S21
0.05GHz-6GHz / 0dBm Attenuation set / 25Cº

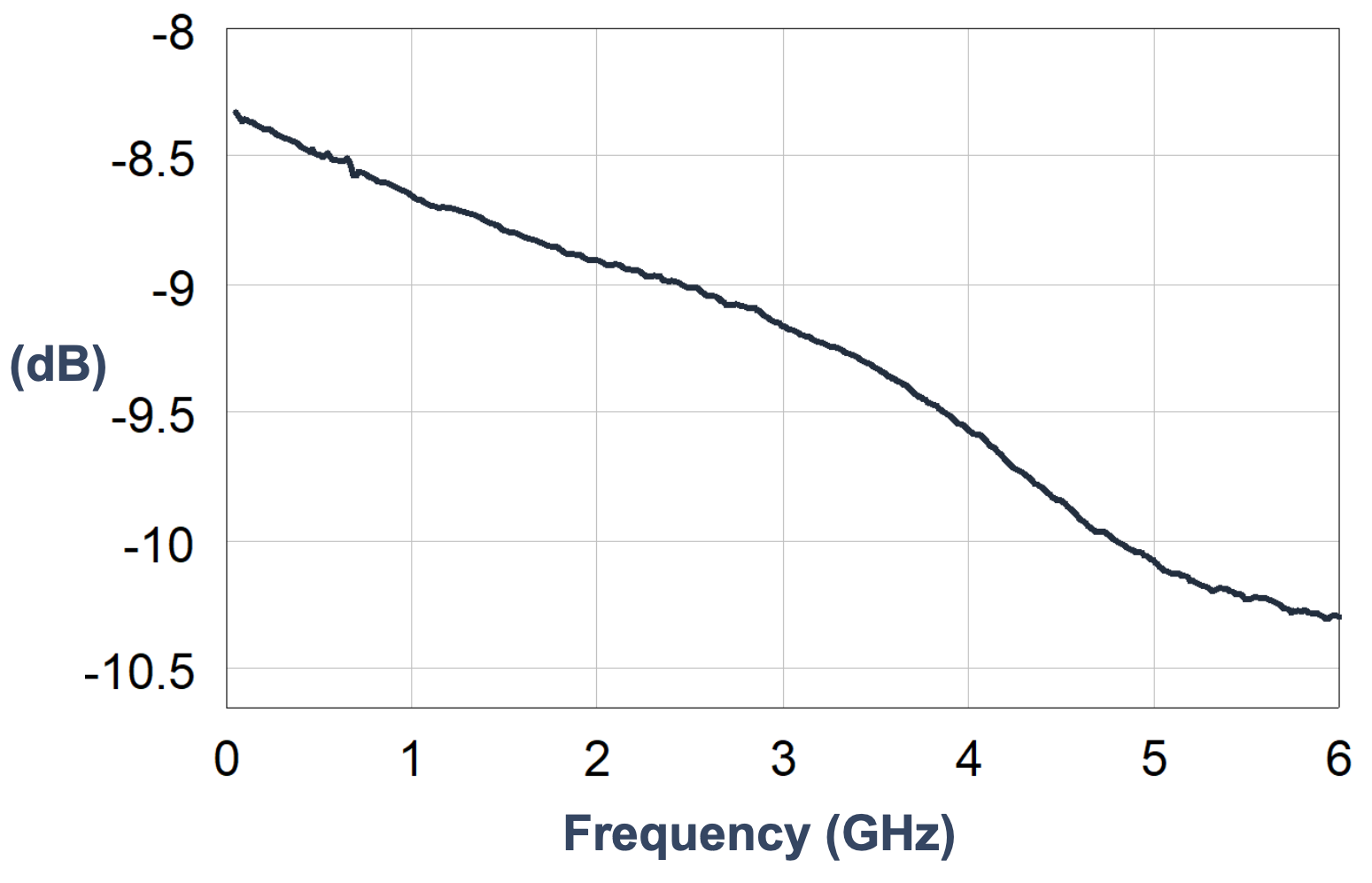

S11
0.05GHz-6GHz / 7dBm Attenuation set / 25Cº

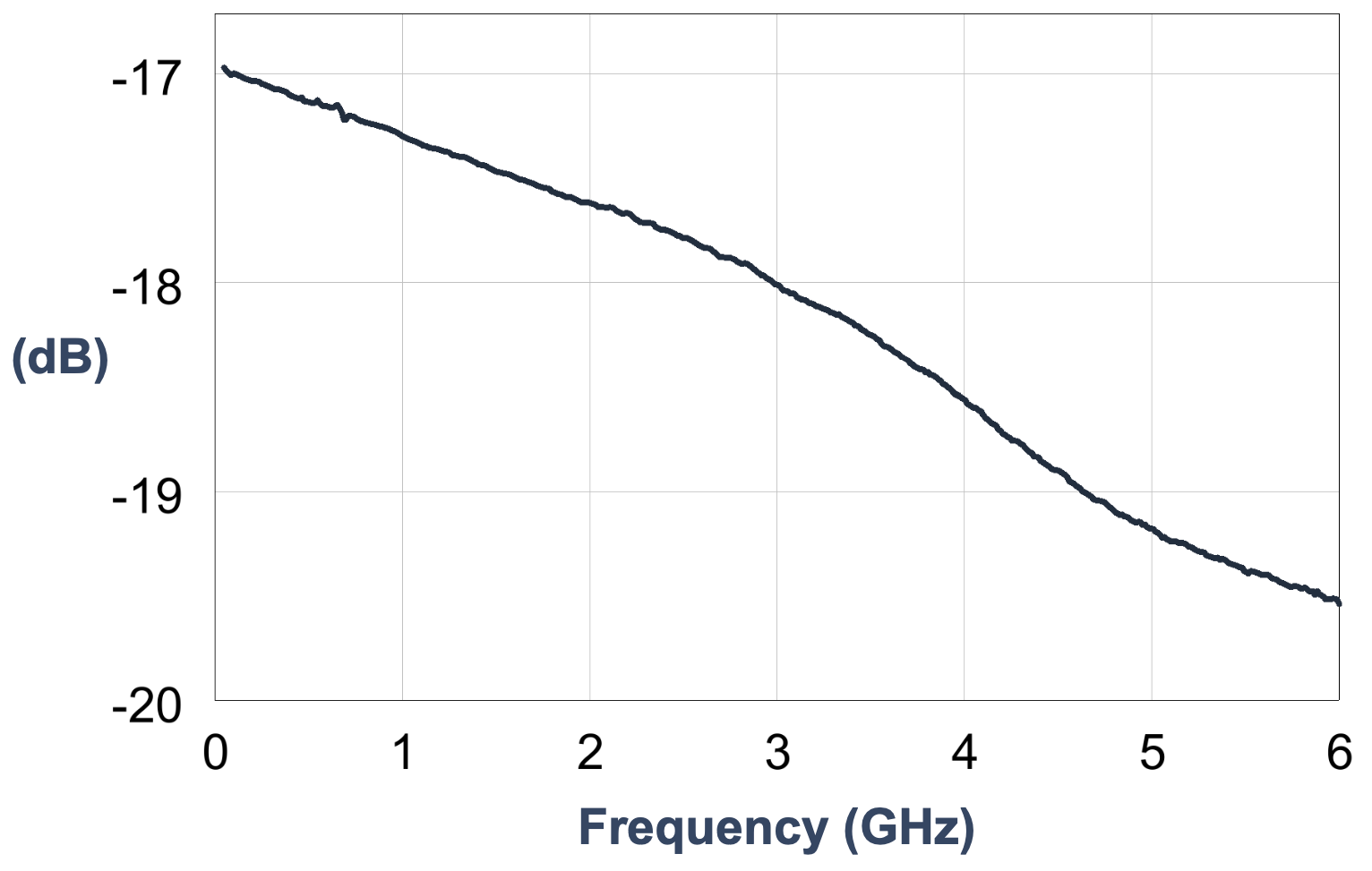

S21
0.05GHz-6GHz / 15.5dBm Attenuation set / 25Cº

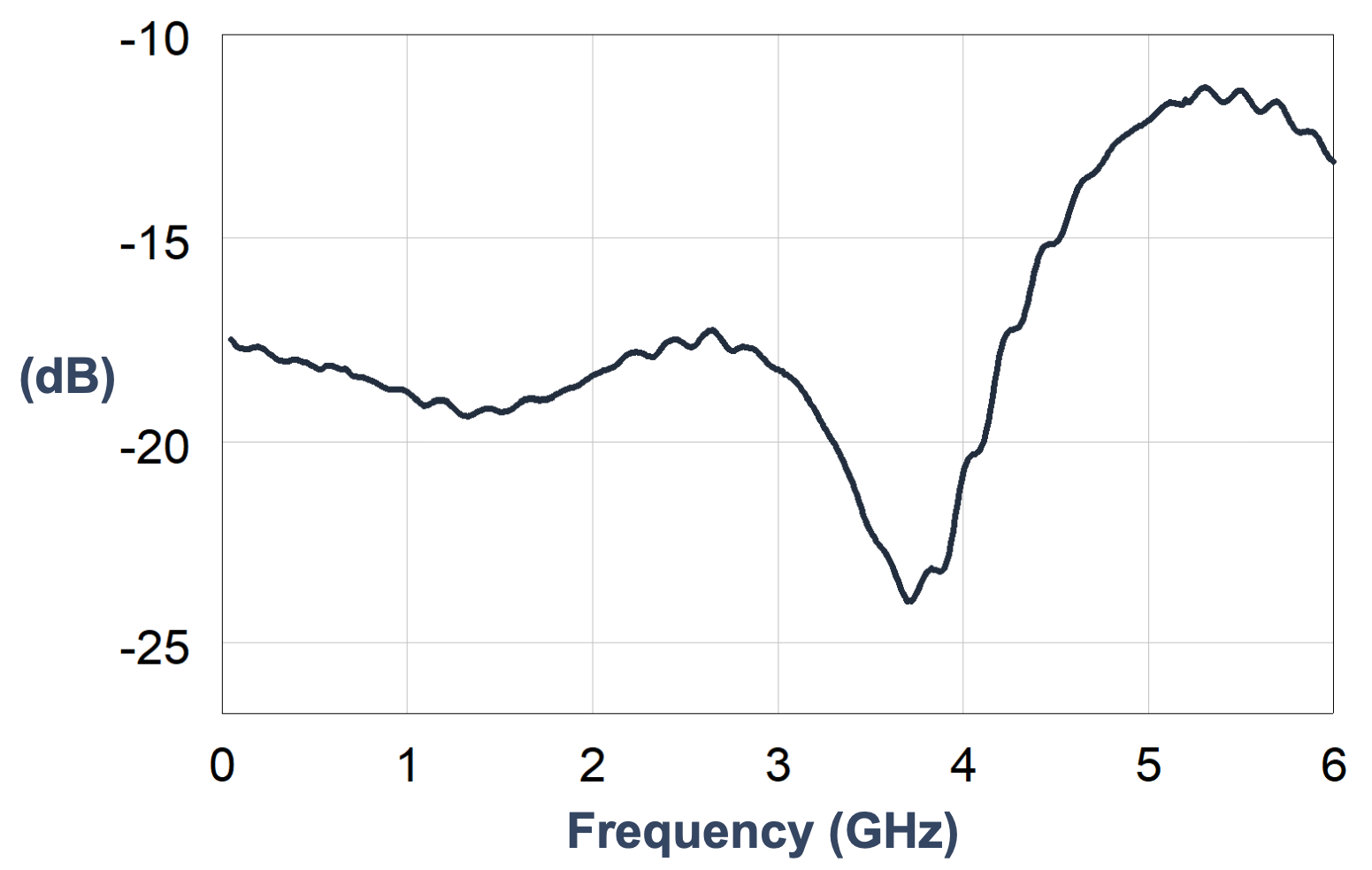

S11
0.05GHz-6GHz / 0dBm Attenuation set / 25Cº

S11
0.05GHz-6GHz / 7dBm Attenuation set / 25Cº

S11
0.05GHz-6GHz / 15.5dBm Attenuation set / 25Cº

Mechanical Dimensions

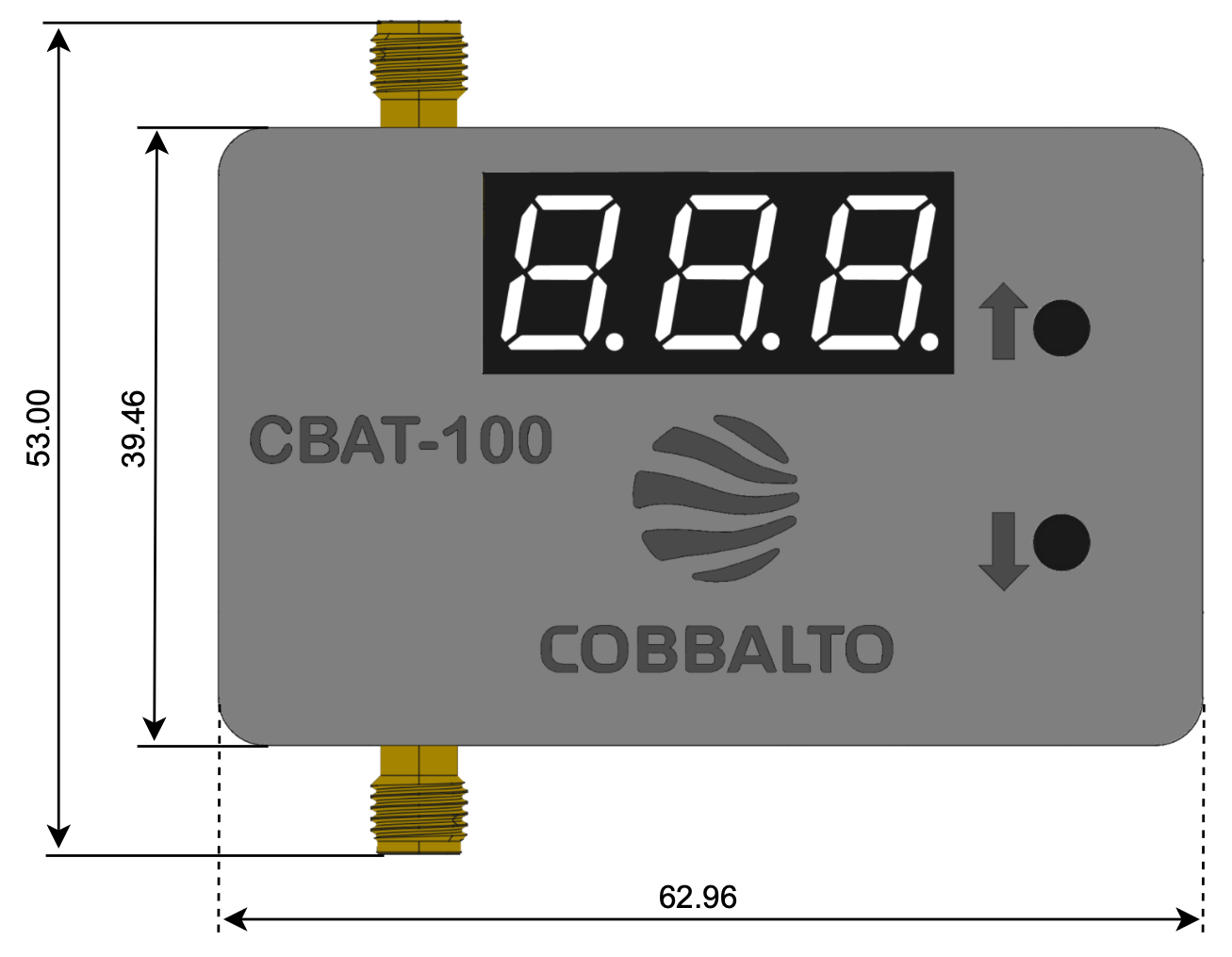

Top side view

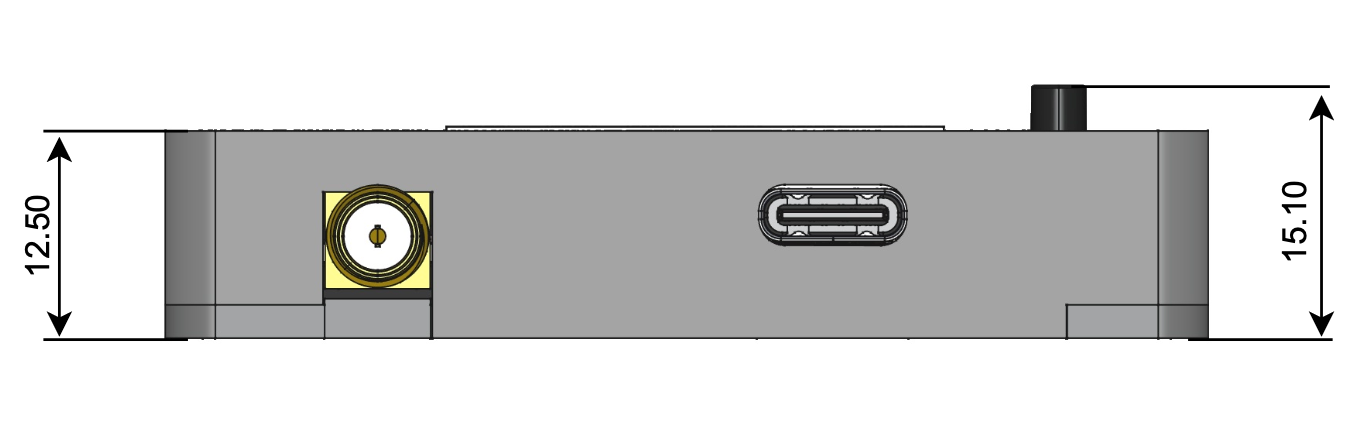

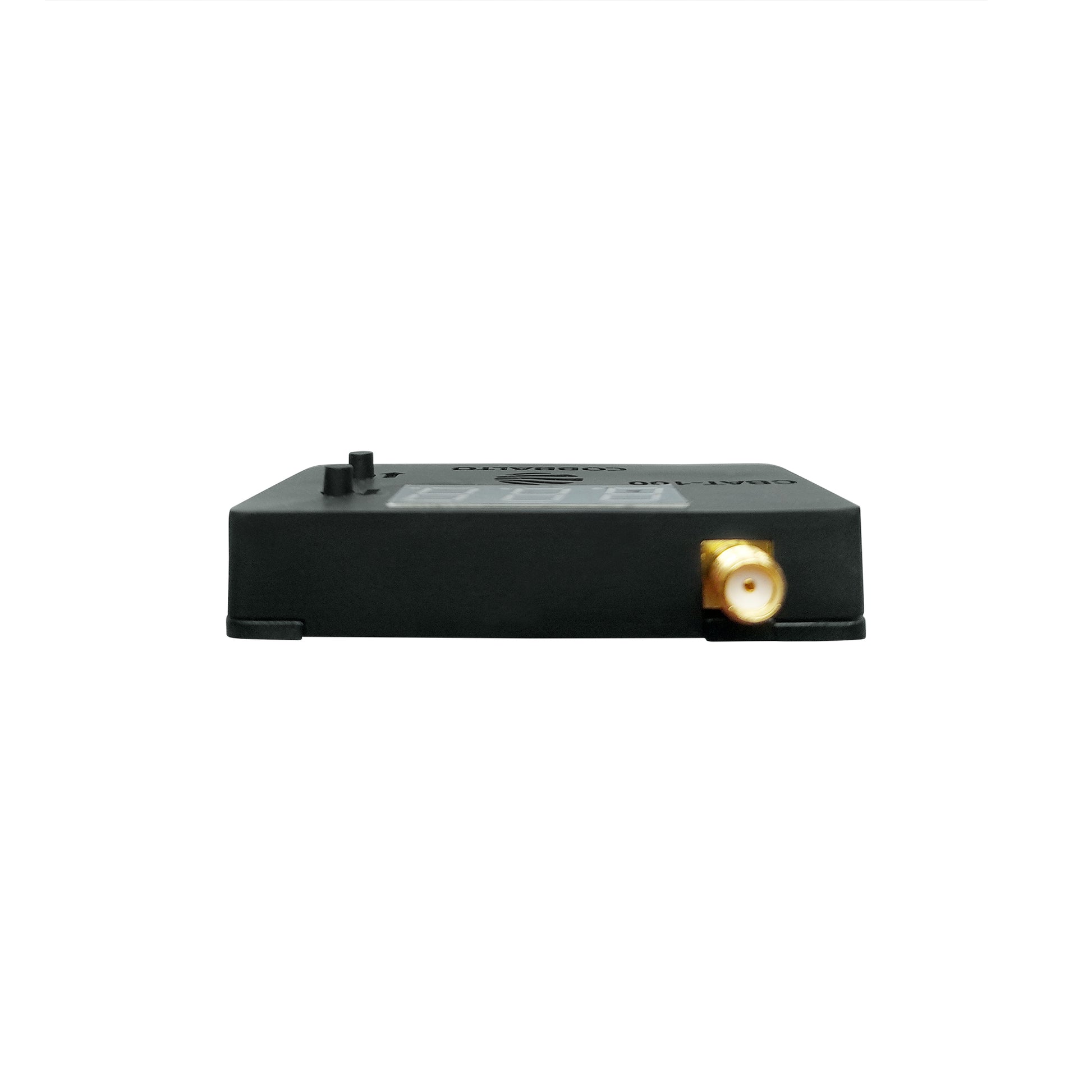

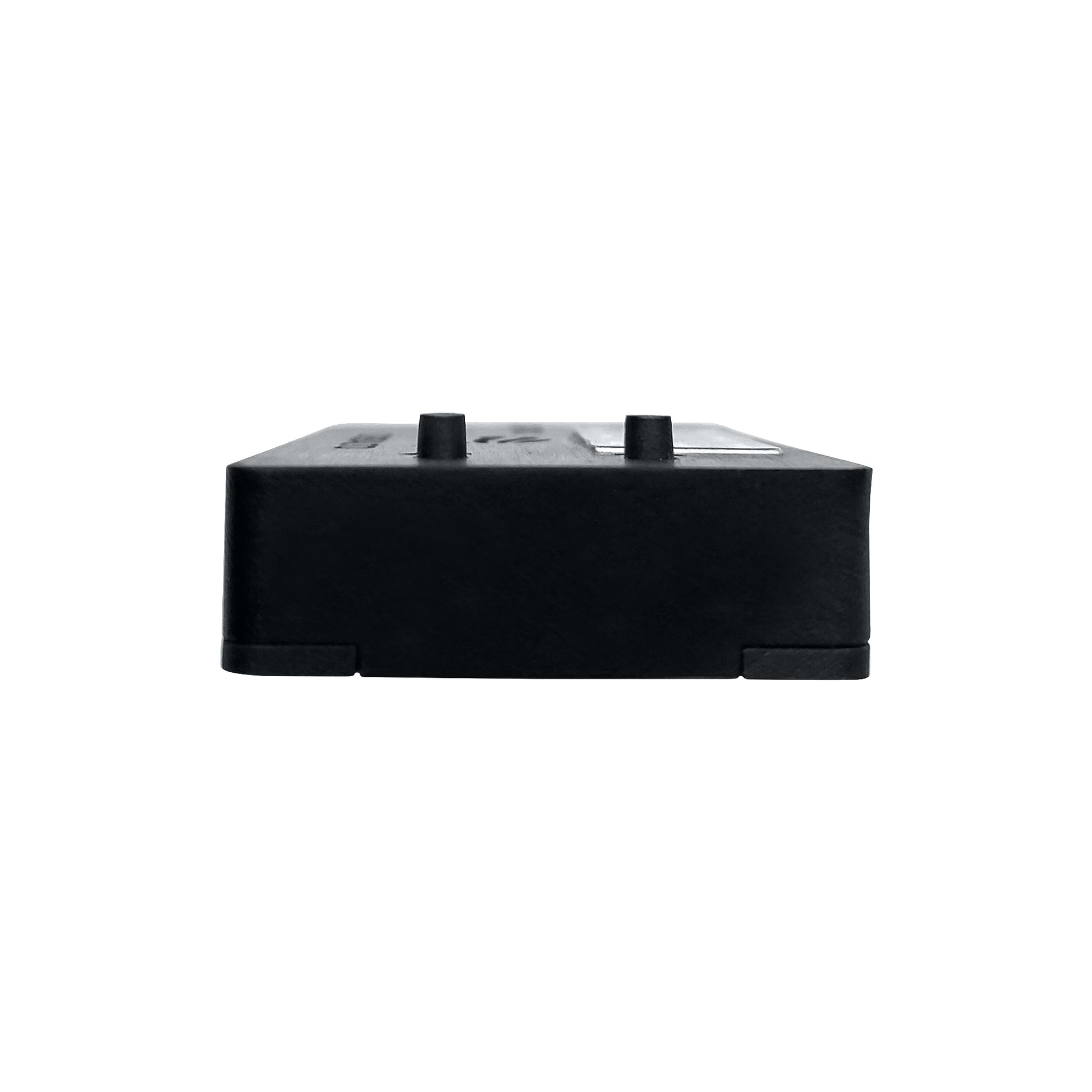

Right side view

3D Model
